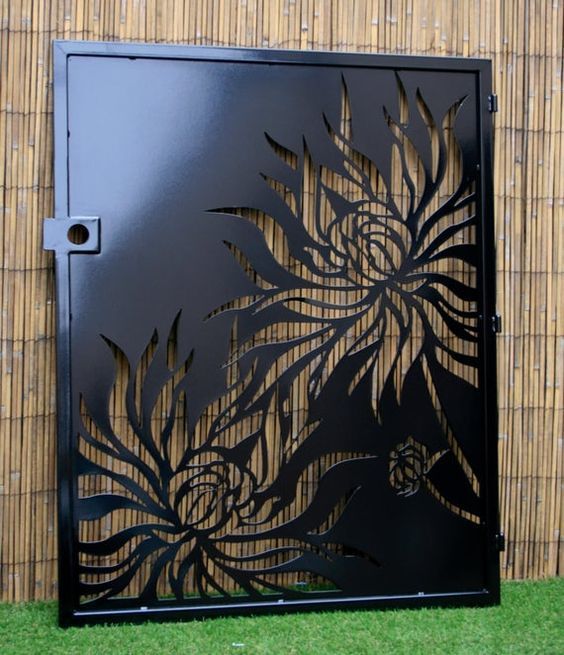

Cnc Plasma Design

Name: Cnc Plasma Design
Brand: THERM-X INDUSTRIAL EQUIPMENTS PRIVATE LIMITED
Price: 12000 INR
Availability: InStock

Price 12000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cnc Plasma Design Specification

Product Type
CNC Plasma Design Machine

General Use
Industrial Metal Cutting

Material
All Ferrous & Non-Ferrous Metals

Type
CNC Plasma Cutter

Capacity
Sheet thickness up to 25 mm

Weight (kg)
Approx. 1200 kg

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Bar Feeder
Not Included

Power Source
Electric

Power Consumption
6-8 kW

Rigidity
High

Voltage
220-415 V AC

Motor
Stepper / Servo Motor

Table Size
1500 mm x 3000 mm

Spindle Speed
N/A (Not applicable in plasma cutting)

Axial Choice
Dual (X, Y axis)

Dimension (L*W*H)
3700 x 2150 x 1500 mm

Feature
Heavy-duty frame, High precision cutting, Smooth edge finish

Color
Blue & Yellow

Installation Service
Available upon request

Cutting Speed
Up to 15000 mm/min

Input File Format
DXF, G-Code, etc.

Drive Type
Rack & Pinion Drive

Gas Supply
Compressed Air

Software Compatibility
AutoCAD, CorelDraw, FastCAM

Torch Height Control
Automatic

Control System
Advanced CNC Controller

Fume Extraction
Optional

Repeatability
±0.05 mm

Cooling System
Air Cooled

Operating Language
English / Multi-language Support

Cutting Head
High frequency plasma torch

Display
7-inch LCD Touch Panel

Working Environment
0-45°C, < 95% RH

Cnc Plasma Design Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
3 Pieces Per Month

Delivery Time
4-5 Week

About Cnc Plasma Design

Specification

Service Location	Pan India
Industry/Application	Industrial
Material	Mild Steel
Time Duration	2 Day
Cutting Materials	Iron/Steel
Type Of Machine	CNC Plasma Cutting Machine
Type Of Cutting	Plasma Cutting

High Precision and Reliability

The CNC Plasma Cutter offers industry-leading repeatability at 0.05 mm, enabling precise cuts every cycle. The heavy-duty frame and rack & pinion drive provide rigid support and smooth, accurate movement, even at cutting speeds up to 15,000 mm/min. This ensures consistently high-quality results for a wide range of metalworking applications.

Smart Control and User Experience

With a 7-inch LCD touch panel and advanced CNC controller, operators benefit from intuitive machine control. Multi-language support, automatic torch height adjustment, and dual-axis movement simplify operation, reducing set-up time and operator errors. Installation services are available upon request, supporting new users to get started with minimal downtime.

Versatile Software and File Support

The machine works seamlessly with design tools like AutoCAD, CorelDraw, and FastCAM. It accepts commonly used input formats such as DXF and G-Code, allowing easy integration into existing workflows. Fume extraction and air cooling contribute to a safe working environment, suitable for industrial settings in India.

FAQ's of Cnc Plasma Design:

Q: How do I begin using the CNC Plasma Cutter after installation?

A: Once professionally installed (installation services available), start by linking your design software (AutoCAD, CorelDraw, FastCAM) to the machine. Upload your cutting files (DXF or G-Code) via the CNC controller's 7-inch LCD touch panel. Set material parameters as required and activate automatic torch height control for smooth processing.

Q: What types of metal sheets can this plasma cutter process?

A: This CNC Plasma Cutter is suitable for all ferrous and non-ferrous metals with sheet thickness up to 25 mm. It provides excellent results for industrial applications involving steel, aluminum, copper, and other metal types commonly used in fabrication and manufacturing.

Q: When is fume extraction necessary and is it included?

A: Fume extraction is essential when working in enclosed or poorly ventilated spaces to maintain air quality and operator safety. This machine offers fume extraction as an optional feature, allowing customization based on your specific workshop requirements.

Q: Where can I get maintenance and technical support?

A: Technical support, servicing, and spare parts are provided by authorized dealers, importers, and service providers in India. Contact your supplier or service representative for maintenance assistance and troubleshooting. Regular maintenance ensures optimal performance and longevity of the equipment.

Q: What is the process for loading and cutting designs?

A: Designs created in AutoCAD, CorelDraw, or FastCAM can be exported as DXF or G-Code files. These files are then uploaded to the CNC machine's controller. The high frequency plasma torch cuts the material automatically, controlled by the software, offering precise and smooth edge finishes.

Q: What are the main benefits of using this CNC Plasma Cutter in an industrial setting?

A: Key advantages include high cutting speed (up to 15,000 mm/min), automatic features for ease of use, precise repeatability, support for multiple design formats, and robust construction for continuous heavy-duty operation. These translate to increased productivity, consistent quality, and reduced manual errors.

Q: Can I operate the machine in various environments and does it support multiple languages?

A: Yes, the cutter works efficiently within a broad temperature range (0-45C) and humidity below 95% RH. The control interface offers English and multiple language options, facilitating use by diverse teams across industrial facilities in India.
